Description
UETB209-28 bearing is a 1-3/4″ bore tapped-base normal-duty mounted bearing unit that utilizes a Tru-Loc device for securing onto a 1-3/4″ shaft. UETB209-28 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior UETB209-28 bearing with a 1-3/4″ bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UETB209-28 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base UETB209-28 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UETB209-28 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our UETB209-28 bearings, and we will be happy to assist you!

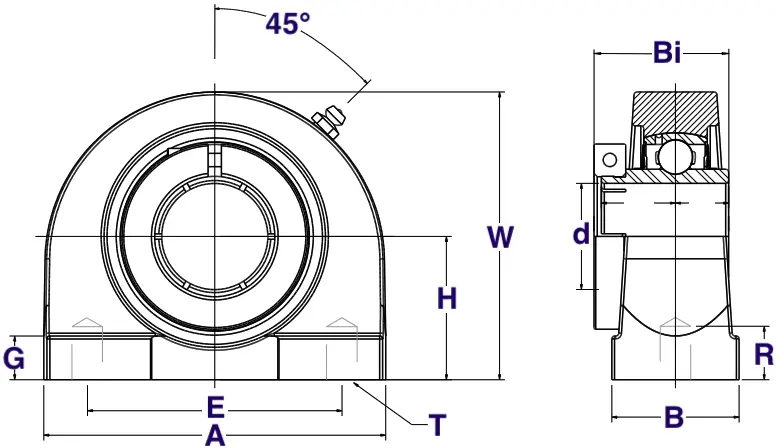

UETB209-28 Bearing Dimensions
- Part #: UETB 209-28
- Shaft Diameter (d): 1-3/4″
- Dimension (H): 2.125″
- Dimension (A): 5.00″
- Dimension (E): 3.75″
- Dimension (B): 2.00″
- Dimension (R): 0.79″
- Dimension (G): 0.56″
- Dimension (W): 4.25″
- Dimension (Bi): 1.9764″
- Dimension (N): 0.7480″
- Dimension (M): 1.1890″
- Bolt Used: 1/2-13
- Dynamic Load Rating (LBS): 7,160
- Static Load Rating (LBS): 4,676
- Bearing Insert: UE 209-28
- Housing Number: TB 209
- Weight (LBS): 5.5
