Description

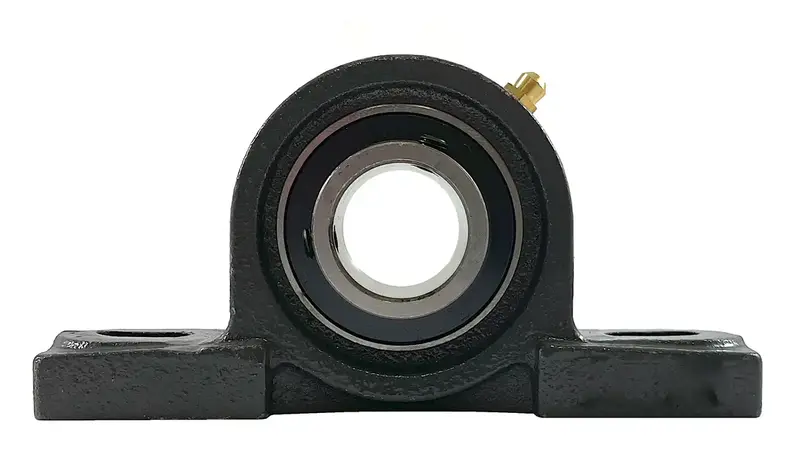

UCP208-24 bearing is a two-bolt normal duty pillow block bearing with a 1-1/2″ bore. It utilizes set-screws for locking onto a 1-1/2″ shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCP208-24 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCP208-24 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCP208-24 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCP208-24 bearings contact our customer support team and we will be happy to assist you!
UCP208-24 Bearing Dimensions
- Part #: UCP 208-24
- Shaft Diameter (d): 1-1/2
- Dimension (H): 1.938″
- Dimension (A): 7.25″
- Dimension (E): 5.44″
- Dimension (B): 2.13″
- Dimension (S2): 0.81″
- Dimension (S1): 0.59″
- Dimension (G): 0.71″
- Dimension (W): 3.88″
- Dimension (Bi): 1.9370″
- Dimension (N): 0.7480″
- Dimension (M): 1.1890″
- Bolt Used: 1/2
- Dynamic Load Rating (LBS): 6,634
- Static Load Rating (LBS): 4,079
- Bearing Insert: UC 208-24
- Housing Number: P 208
- Weight (LBS): 4.2
